Green Energy, Green Life, Green World
10 Years
| Ask Lasest Price | |
| Brand Name : | XCsolarpv |
| Certification : | CE, UL,3C, RoHS, TUV |
| Model Number : | XC-(20K-50K)OSI |
| Delivery Time : | 7-14 Working Days |
| Payment Terms : | T/T, Western Union, MoneyGram, Cash, PayPal |
| Supply Ability : | 600 Sets/Month |

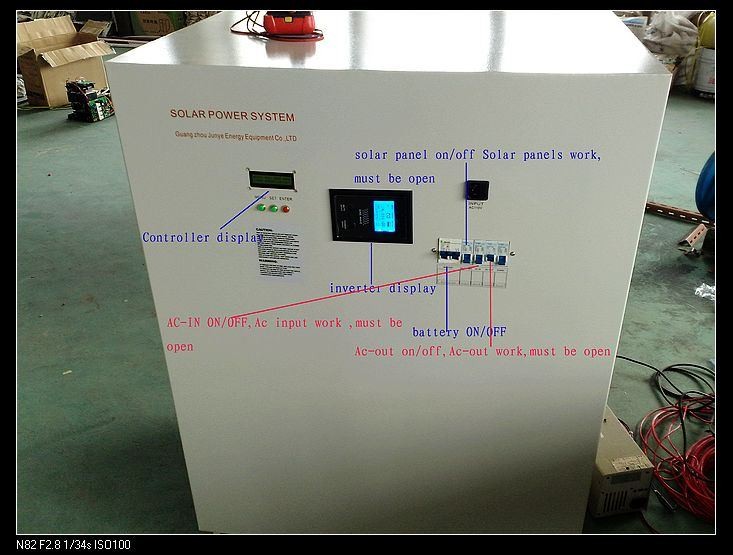

Off Grid Solar Inverter 20kw-50kw for Solar Power station
Features
Model | XC-20KOSI | XC-30KOSI | XC-50KOSI |
Power | 10KW 20KW | 30KW | 50KW |
Input voltage | 96V 240V/380v | 380V | 380V |
(240V low – high voltage) 196-310V | (240V low – high voltage) 196-420V | (240V low – high voltage) 196-420V | |
Converse time | ≤ 4ms Automatic transfer | ||
Converse rate | 87%-92% | ||
Inverter frequency | 50Hz or 60Hz | ||
Output voltage | 4 steps AVR, 220v±3% 380v±3% | ||
Output wave form | Pure sine wave | ||
Charging currency | 15-30A | ||
Weight | 130kg | 150kg | 200kg |
Dimension(W*H*D) | 650*300*750mm | ||
Protection | Protection against output short-circuit, overload, high/low voltage, reverse polarity, etc can be taken as charging function | ||
Power supply sequence | Electric supply(AC) prior or Battery prior (Optional) If electric supply prior, namely use electric supply firstly, when there is electric supply, use the power in battery while there is no electric supply. If battery prior, namely use battery power firstly, after exhausting the power in battery, use electric supply, meanwhile can charge the battery from the electric supply. | ||
|
|
